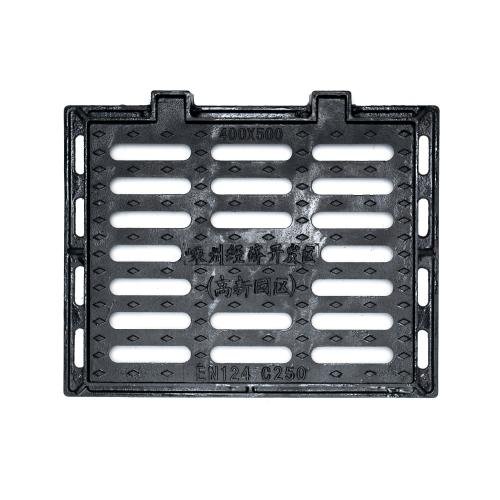

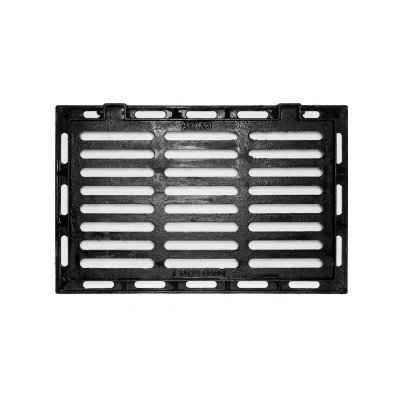

Lozhongbao D400 Ductile Iron Gully Grate

Product Features: D400 High Load-Bearing,Corrosion Resistant,Efficient Drainage
In high-traffic environments such as urban arterial roads, expressways, logistics parks, and commercial plazas, gully grates must not only perform the core function of efficient drainage but also withstand the repeated impact of thousands of heavy vehicle passes each day. The D400 load rating, defined by the European Standard EN124 with a test load of 400 kN (equivalent to 40 tons), serves as the critical threshold distinguishing "ordinary drainage components" from "heavy-duty drainage systems." The Lozhongbao D400 Ductile Iron Gully Grate is a professional solution meticulously engineered for such demanding conditions. It integrates cutting-edge achievements in material science with optimized structural mechanics, ensuring long-term service performance that guarantees both drainage efficiency and perfect alignment with the road surface, making it an indispensable and reliable interface between the city's "underground veins" and "ground-level traffic." The core competitiveness of the Lozhongbao D400 Gully Grate stems from its systematic and comprehensive construction of engineering advantages. Unlike numerous products on the market that merely meet basic parameters, Lozhongbao's strengths are not limited to a single dimension but are rooted in a holistic approach: high-purity material enhancement at the source, topologically optimized structural design, life-cycle-spanning anti-corrosion protection, and forward-looking provision for intelligent integration. Backed by nearly two decades of experience in manufacturing municipal castings and a stringent quality control system (ISO9001, CE, SGS certified) at Hubei Lozhongbao Metal Products Co., Ltd. , every Lozhongbao D400 Gully Grate embodies the pursuit of ultimate long-term reliability, transforming a simple drainage component into a durable infrastructure asset that adds long-term value to municipal properties

Inquire Now
hubeiluzhongbao@gmail.com

Tags:

Grate Luzhongbao Manhole Cover

Product Description Core Advantages of Lozhongbao D400 Gully Grate I. Superior Material Performance and Precision Casting The Lozhongbao D400 Gully Grate is manufactured from high-grade ductile iron (QT500-7 or higher) . Through the selection of high-purity raw materials and a unique rare earth magnesium alloy spheroidizing treatment, the material achieves a tensile strength stably exceeding 500 MPa, with elongation far surpassing national standard requirements . This material characteristic, combining "high strength with high toughness," allows the grate to absorb energy through micro-deformation when subjected to impact loads from heavy trucks, thus preventing brittle fracture. Furthermore, the use of intelligent static pressure casting production lines ensures consistent dimensional accuracy and a dense, defect-free internal structure for every product, laying the foundation for an exceptionally long service life from the material source. II. Scientifically Optimized Structural Design and Efficient Drainage Lozhongbao employs finite element topology optimization technology to iteratively refine the reinforcement rib layout of the grate. Its unique three-dimensional spatial curved surface reinforcement network efficiently and uniformly transfers vehicle loads to the frame and foundation layer, eliminating local stress concentrations. This results in over 30% higher resistance to deformation compared to traditional uniform rib designs . Simultaneously, the grate surface features a grille opening design optimized through fluid dynamics, maximizing the open area ratio for drainage while ensuring structural integrity, allowing for rapid surface runoff discharge and effectively preventing water accumulation. The optimized grid texture also provides excellent anti-slip performance (PSRV > 70) , ensuring the safety of pedestrians and vehicles in rainy and snowy conditions . III. Long-lasting Corrosion Protection and Human-centric Details To combat long-term erosion from corrosive media like rainwater and de-icing salts, Lozhongbao has constructed a triple-layer anti-corrosion protection system: a base layer of hot-dip galvanizing (zinc thickness ≥80μm) providing cathodic protection, an intermediate epoxy resin coating forming a dense barrier, and a polyurethane topcoat enhancing weather resistance. This entire system passes over 3,000 hours of salt spray testing, ensuring the main structure remains free from corrosion for 30 years in harsh environments . The product comes standard with a captive hinge mechanism, requiring a special tool for opening, effectively preventing theft. It is also equipped with mechanical lifting points, facilitating safe and efficient operation by maintenance personnel . The frame corners feature a widened and reinforced design to effectively disperse loads and protect the surrounding pavement structure . IV. Intelligence Compatibility and Life-Cycle Value The Lozhongbao D400 Gully Grate incorporates standardized intelligent monitoring interfaces at the design stage, allowing for the future integration of sensors for water level monitoring, displacement detection, and unauthorized opening alerts, thus reserving space for future smart city municipal system upgrades. Analyzed from a life-cycle cost (LCC) perspective, although the initial investment in Lozhongbao products may be slightly higher than cheaper alternatives, their exceptionally long maintenance-free period, extremely low failure rate, and preventive maintenance capabilities enabled by intelligent early warning result in significantly lower total costs over a 10-15 year service life compared to alternatives requiring frequent replacement and repair. This represents a true transformation from a "cost expenditure" to a "value asset."
